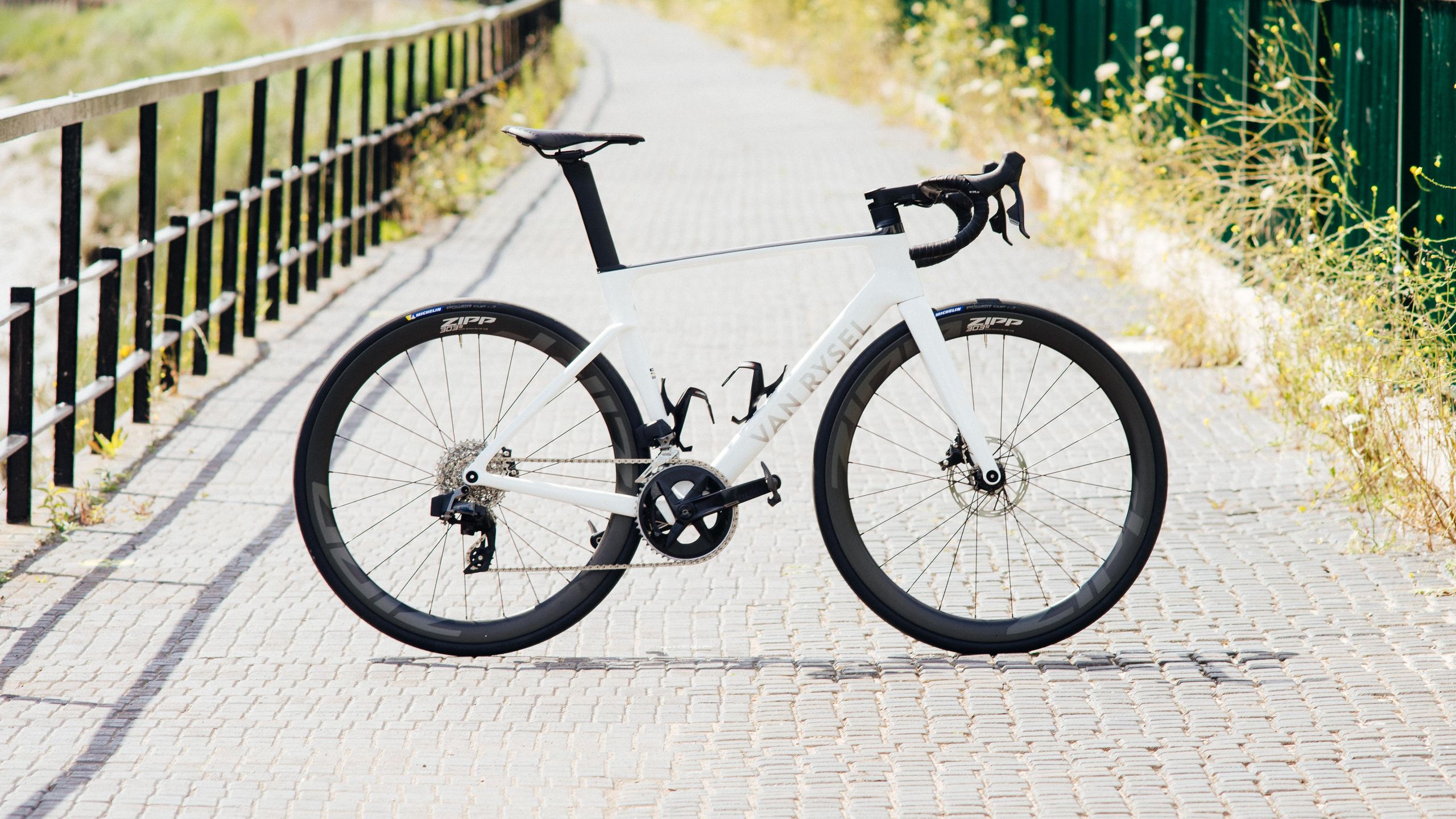

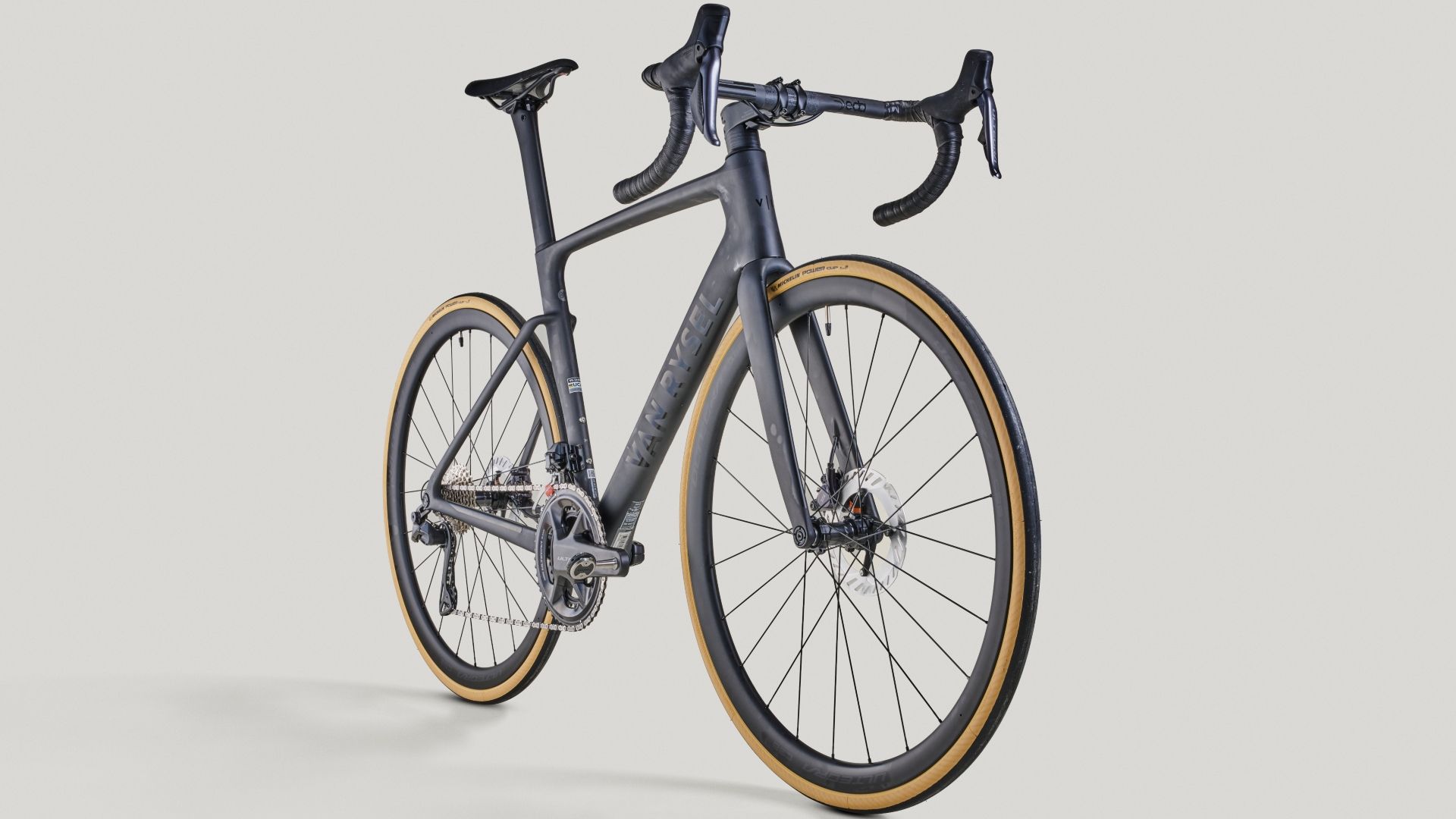

Van Rysel's race road bike — the WorldTour-adjacent Decathlon racer. Low, stiff, and surprisingly close to a Tarmac-class stack/reach if you size carefully.
Racers who want Van Rysel. EDR if you need stack.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 mm | 378 mm | 1.34:1 | 80 mm | 380 mm | 165 mm | 71.5° | 74.5° | 408 mm | 974 mm | 72 mm | 700c |
| S | 525 mm | 384 mm | 1.37:1 | 90 mm | 400 mm | 170 mm | 72.5° | 74.0° | 408 mm | 980 mm | 72 mm | 700c |
| M | 543 mm | 390 mm | 1.39:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.5° | 408 mm | 988 mm | 70 mm | 700c |
| L | 561 mm | 396 mm | 1.42:1 | 110 mm | 440 mm | 175 mm | 73.0° | 73.0° | 408 mm | 998 mm | 70 mm | 700c |
| XL | 579 mm | 402 mm |
No colorway catalog for 2024 yet.
Same published geometry as 2023.
No verified spec sheet for 2024 or 2023.
No launch MSRP in the catalog yet.
| 1.44:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.5° |
| 73.0° |
| 408 mm |
| 1010 mm |
| 68 mm |
| 700c |
