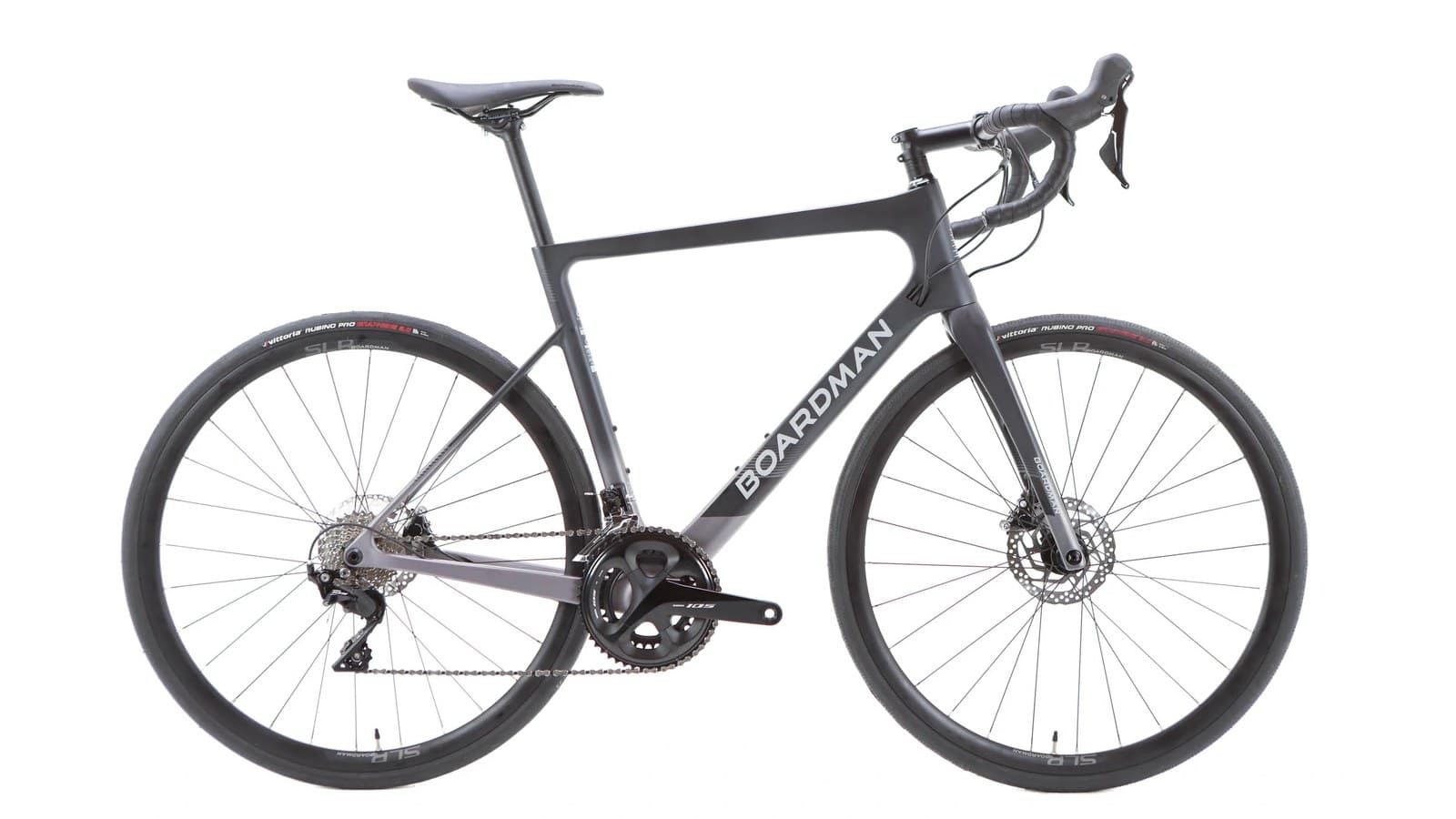

Boardman SLR 2012 Geometry, Reviews, and Specs

Fit and steering

Aggressive fitSlow steeringFast steeringRelaxed fit

Weight—

Climbing6.7

Aero8.3

Comfort3.3

Size	Stack	Reach	Stack/reach	Stem	Bar	Crank	Head tube angle	Seat tube angle	Chainstay	Wheelbase	BB drop	Wheel size
XXS	508 mm	376 mm	1.35:1	70 mm	360 mm	165 mm	71.5°	74.5°	408 mm	974 mm	72 mm	700c
XS	526 mm	382 mm	1.38:1	80 mm	380 mm	165 mm	72.5°	74.0°	408 mm	980 mm	72 mm	700c
S	544 mm	388 mm	1.40:1	90 mm	400 mm	170 mm	73.0°	73.5°	408 mm	988 mm	70 mm	700c
M	562 mm	394 mm	1.43:1	100 mm	420 mm	172.5 mm	73.0°	73.0°	408 mm	998 mm	70 mm	700c
L	580 mm	400 mm

No colorway catalog for 2012 yet.

This is the earliest SLR year in the catalog. No prior year to compare.

No verified spec sheet for 2012 yet.

No launch MSRP in the catalog yet.

We couldn't find any reviews for this model year.

Boardman SLR 2012 Geometry Chart

Size	Stack	Reach	Stack/reach	Stem	Bar	Crank	Head tube angle	Seat tube angle	Chainstay	Wheelbase	BB drop	Wheel size
XXS	508 mm	376 mm	1.35:1	70 mm	360 mm	165 mm	71.5°	74.5°	408 mm	974 mm	72 mm	700c
XS	526 mm	382 mm	1.38:1	80 mm	380 mm	165 mm	72.5°	74.0°	408 mm	980 mm	72 mm	700c
S	544 mm	388 mm	1.40:1	90 mm	400 mm	170 mm	73.0°	73.5°	408 mm	988 mm	70 mm	700c
M	562 mm	394 mm	1.43:1	100 mm	420 mm	172.5 mm	73.0°	73.0°	408 mm	998 mm	70 mm	700c
L	580 mm	400 mm
