Loading geometry

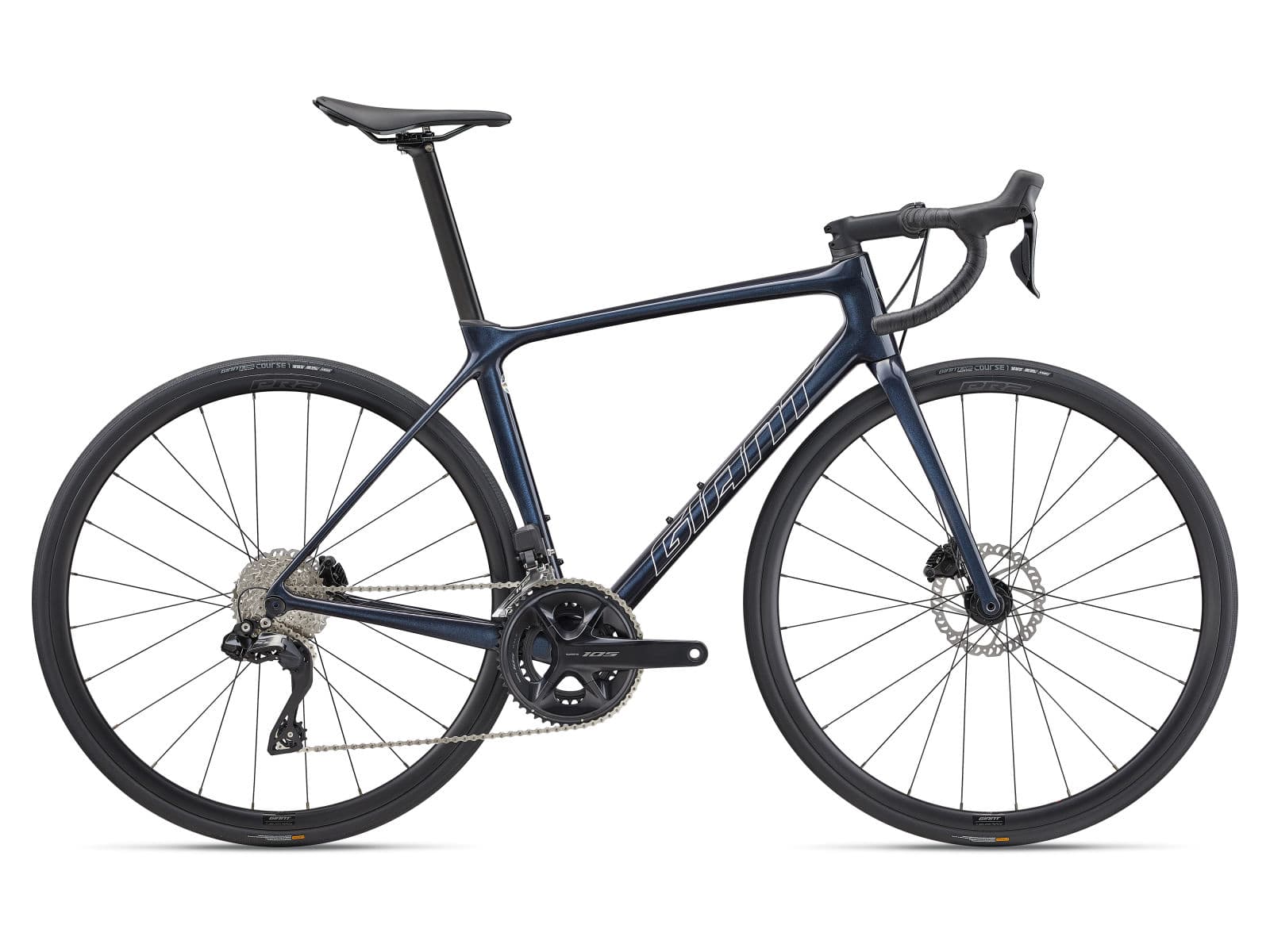

Giant's lightweight race bike: compact sloping top tube, sharp steering, and a fit that has been a stack/reach reference for a long time. Less aero drama than Propel.
Racers and fit riders who want Giant's race geometry without Propel's deep tubes.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 mm | 376 mm | 1.38:1 | 80 mm | 380 mm | 165 mm | 71.0° | 74.5° | 405 mm | 970 mm | 70 mm | 700c |
| S | 528 mm | 383 mm | 1.38:1 | 90 mm | 400 mm | 170 mm | 72.0° | 74.0° | 405 mm | 974 mm | 70 mm | 700c |
| M | 546 mm | 388 mm | 1.41:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.5° | 405 mm | 980 mm | 70 mm | 700c |
| ML | 563 mm | 393 mm | 1.43:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.0° | 405 mm | 986 mm | 70 mm | 700c |
| L | 581 mm |
Adds Cold Night. Drops Cold Iron.
Same published geometry as 2022.
No verified spec sheet for 2023 or 2022.
No launch MSRP in the catalog yet.
| 402 mm |
| 1.45:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.0° |
| 73.0° |
| 405 mm |
| 1000 mm |
| 70 mm |
| 700c |
| XL | 599 mm | 412 mm | 1.45:1 | 110 mm | 440 mm | 175 mm | 73.0° | 72.5° | 405 mm | 1015 mm | 70 mm | 700c |
