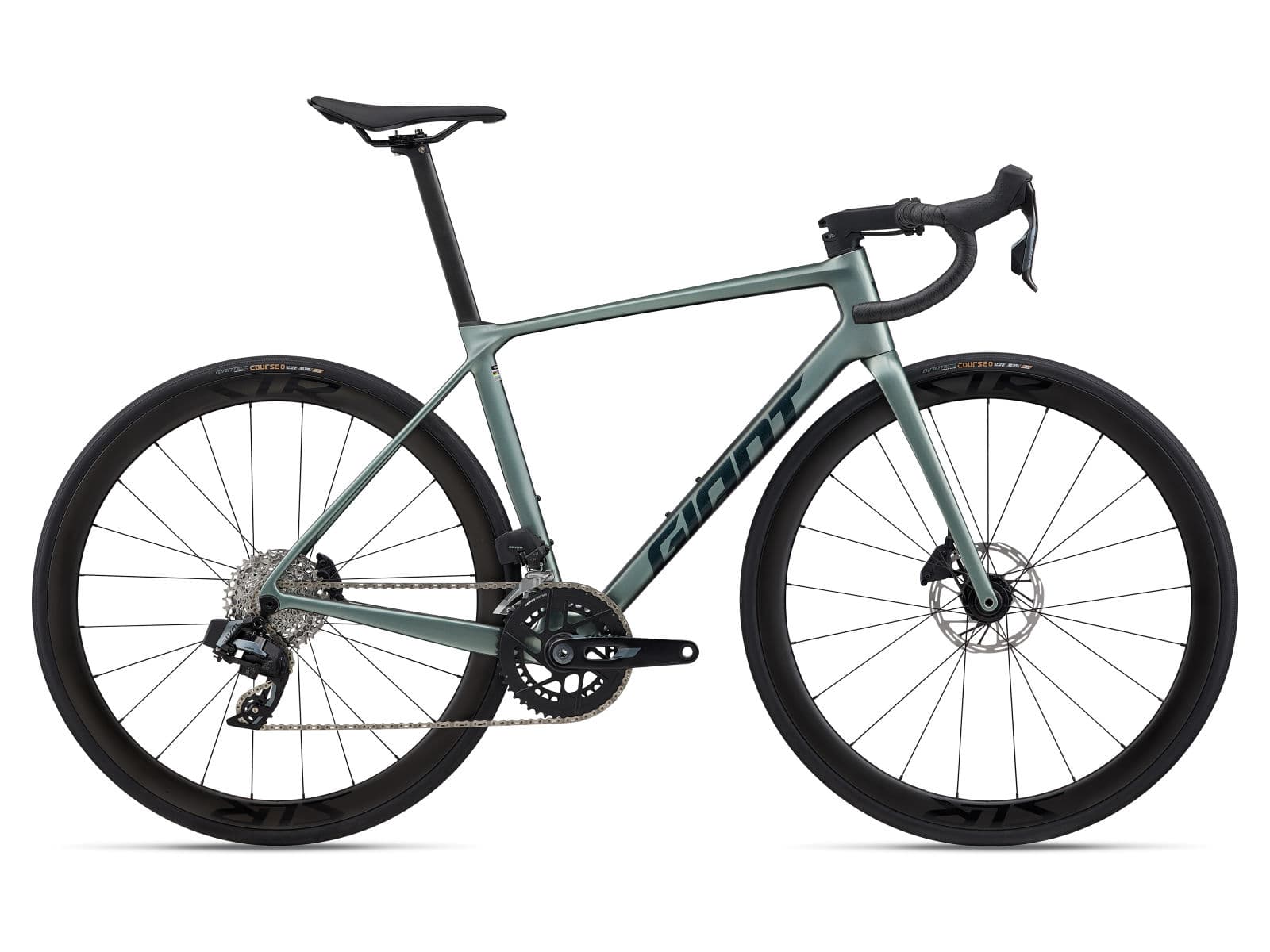

Giant's lightweight race bike: compact sloping top tube, sharp steering, and a fit that has been a stack/reach reference for a long time. Less aero drama than Propel.
Racers and fit riders who want Giant's race geometry without Propel's deep tubes.
| Size | Stack | Reach | Stack/reach | Stem | Bar | Crank | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop | Wheel size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 mm | 376 mm | 1.38:1 | 80 mm | 380 mm | 165 mm | 71.0° | 74.5° | 405 mm | 970 mm | 70 mm | 700c |
| S | 528 mm | 383 mm | 1.38:1 | 90 mm | 400 mm | 170 mm | 72.0° | 74.0° | 405 mm | 974 mm | 70 mm | 700c |
| M | 546 mm | 388 mm | 1.41:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.5° | 405 mm | 980 mm | 70 mm | 700c |
| ML | 563 mm | 393 mm | 1.43:1 | 100 mm | 420 mm | 172.5 mm | 73.0° | 73.0° | 405 mm | 986 mm | 70 mm | 700c |
| L | 581 mm |
Adds Alpine Green. Drops Frost Silver.
Same published geometry as 2025.
These are the verified 2026 builds. No 2025 sheet to compare.
2026 launch prices are in. No 2025 MSRP to compare.
$7,000 · 2026 launch MSRP
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | Shimano | ST-R8170 Ultegra Di2 HRD | 2×12 |
| Front derailleur | Shimano | FD-R8150 Ultegra Di2 | braze-on |
| Rear derailleur | Shimano | RD-R8150 Ultegra Di2 | 12-speed |
| Crankset | Shimano | FC-R8100 Ultegra | 52/36
|
| Cassette | Shimano | CS-R8100 Ultegra | 11-30, 12-speed |
| Chain | Shimano | CN-M8100 Ultegra | 12-speed |
| Power meter | — | None | — |
| Brakes | Shimano | BR-R8170 Ultegra | hydraulic disc |
| Rotors | Shimano | SM-RT800 | 160mm / 140mm centerlock |
| 402 mm |
| 1.45:1 |
| 110 mm |
| 440 mm |
| 175 mm |
| 73.0° |
| 73.0° |
| 405 mm |
| 1000 mm |
| 70 mm |
| 700c |
| XL | 599 mm | 412 mm | 1.45:1 | 110 mm | 440 mm | 175 mm | 73.0° | 72.5° | 405 mm | 1015 mm | 70 mm | 700c |
| Stem |
|---|
| Giant |
| Contact SL |
|
| Handlebar | Giant | Contact SL |
|
|---|
| Seatpost | Giant | Vector carbon | — |
|---|
| Saddle | Giant | Fleet SL | — |
|---|
| Wheels | Giant | SLR 2 36 Carbon Disc WheelSystem | 700c |
|---|
| Tires | Giant | Gavia Course 1, 700x28mm | — |
|---|
$13,500 · 2026 launch MSRP
| Component | Brand | Model | Size |
|---|---|---|---|
| Shifters | SRAM | RED AXS E1 HRD | 2×12 |
| Front derailleur | SRAM | RED AXS E1 | braze-on |
| Rear derailleur | SRAM | RED AXS E1 | 36T max |
| Crankset | SRAM | RED AXS E1 with power meter | 48/35
|
| Cassette | SRAM | XG-1290 E1 | 10-33, 12-speed |
| Chain | SRAM | RED E1 Flattop | 12-speed |
| Power meter | SRAM | RED AXS E1 | spindle |
| Brakes | SRAM | RED AXS E1 HRD | hydraulic disc |
| Rotors | SRAM | Paceline X | 160mm centerlock |
| Bottom bracket | SRAM | DUB T47 | internal bearing |
| Stem | Giant | Contact SLR Aero |
|
| Handlebar | Giant | Contact SLR Aero |
|
| Seatpost | Giant | Vector carbon | — |
| Saddle | Giant | Fleet SL | — |
| Wheels | Giant | SLR 1 40 Carbon Disc WheelSystem | 700c |
| Tires | Cadex | Race GC, 700x28mm | — |
$7,000 · 2026 launch MSRP
